SUPER TRAC TRE-52 POWERED STAIR CLIMBER

Call for Price

SUPER TRAC TRE-52 Powered stairclimber for powered and manual wheelchairs taking up to 200kg up and down stairs.

A portable powered wheelchair evacuation platform and stairclimber. The Super Trac’s unique design carries many types of wheelchairs including powered wheelchairs and manual wheelchairs from children’s, adults and sports. It is easy to operate and to train people on its use.

Description

SUPER TRAC TRE-52 Powered stairclimber for powered and manual wheelchairs taking up to 200kg up and down stairs.

A portable powered wheelchair evacuation platform and stairclimber. The Super Trac’s unique design carries many types of wheelchairs including powered wheelchairs and manual wheelchairs from children’s, adults and sports. It is easy to operate and to train people on its use.

APPLICATIONS

  • To assist people in powered and manual wheelchairs when no lift is available, or it is out of action.
  • If a lift is not financially viable or a listed building, then as it is free standing this is a fantastic option.
  • Can be easily transported to other buildings on a campus or where there are multiple buildings. The safe evacuation tool for wheelchair users.
  • Gives buildings accessibility for functions such as weddings

Why Choose the TRE-52?

  • Can carry Bariatric clients and their wheelchair up to 200kg/31 ½ stone
  • The large platform will accommodate virtually any wheelchair including electric and sports chairs.
  • Operates on indoor and outdoor staircases.
  • Includes a rechargeable battery and charger.
  • Wide double tracks securely grip stairs.
  • Large wheels allow easy travel across landings between stair flights.
  • Integrated tie-down straps and seatbelt hold wheelchair securely on the platform at sides and back of the unit.
  • Adjustable headset.
  • Safety side rails on each side.
  • Simple, easy-to-use controls.
  • Robust commercial design.
  • Failsafe braking system

Specifications

Capacity 200 kg
Weight 115 kg
Dimensions 129 x 75.7 x 125.8 cm
Stair Angle 35 degrees
Speed 6.4
Warranty 2 years
Manufacturer Sunwa

Stair Clearances

Minimum: 1600 x 1600 mm

The diagram below shows the typical minimum clearances required on stairways. Actual requirements may vary depending on your stairway configuration.

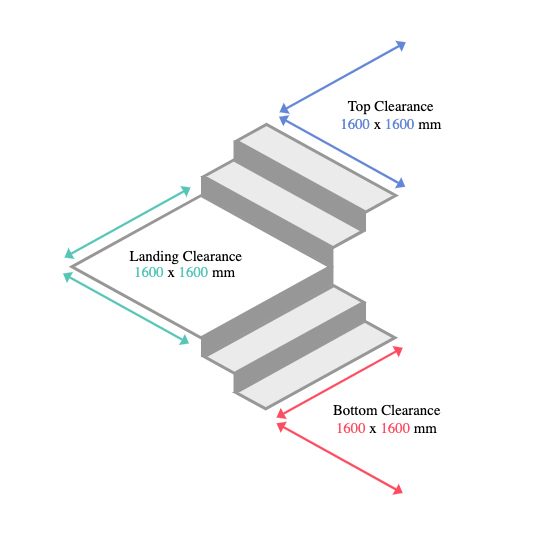

L-shaped landing

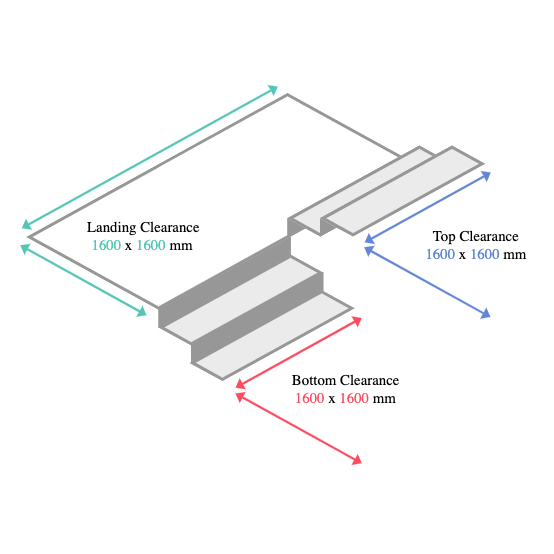

U-shaped Landing

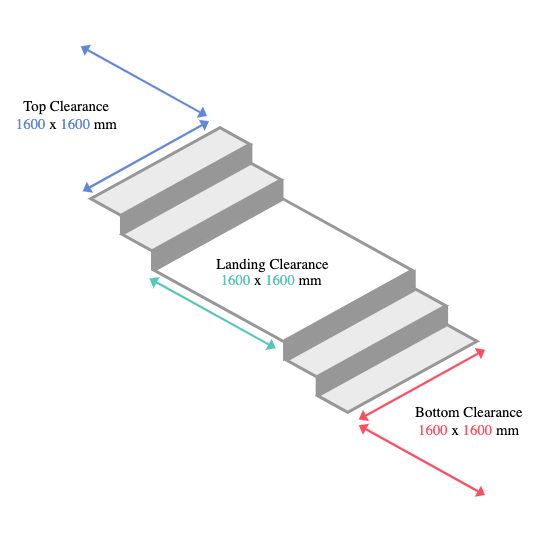

Straight with Landing

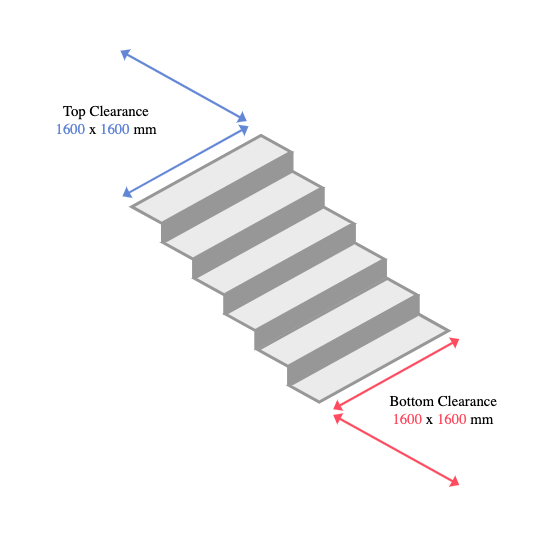

Straight Stairs
